SINOCMP 101-1032-009 Hydraulic Motor Replacement for Char-Lynn H Series, 152 RPM 3602 lb-in High Torque Low Speed Orbital Motor for Construction Agriculture Mining

Complete SpecificationsModel Number: 101-1032-009 / 101-1032Model Code: MH0226AA01AB0000000000000AA00JSeries: H SeriesType: Spool Valve Gerotor Hydraulic MotorDisplacement: 22.6 cu in/rev (370 cc/rev)Max Continuous Pressure: 1250 PSI (86 bar)Max Intermittent Pressure: 2500 PSI (172 bar)Max Continuous Flow: 15 GPM (57 L/min)Max Intermittent Flow: 20 GPM (76 L/min)Max Continuous Speed: 152 RPMMax Intermittent Speed: 203 RPMMax Continuous Torque: 3602 lb-in (407 Nm)Minimum Starting Torque: 2920 lb-in @ continuous pressureMounting Type: 2-Bolt SAE-A Standard FlangePilot Diameter: 3.248 inch (82.50 mm)Pilot Depth: 0.120 inch (3.05 mm)Bolt Circle: 4.187 inch (106.35 mm)Mounting Hole Size: 0.535 inch (13.59 mm)Shaft Type: 1 inch straight keyed, Woodruff key, 1/4-20 UNC-2B threaded endKeyway Size: 0.25 inch (6.35 mm)Ports: 1/2-14 NPTF dryseal (side ports)Case Drain: NoneHousing: Cast iron, primer low gloss black paintDesign Code: J (Nine)Seal Material: Buna-N (standard)Replacement Seal Kit: 60540-000Max Operating Temp: 180°F (82°C)Min Operating Temp: -30°F (-34°C)Min Oil Viscosity: 100 SUSWeight: 14.7 lbs (6.67 kg)Overall Length: 6.95 inch (176.5 mm)Compatibility InformationThis 101-1032-009 hydraulic motor serves as a replacement for Char-Lynn Eaton H Series applications. It is compatible with the following configurations:101-1032-009 (primary model number)101-1032 (base model)Compares To: Buyers Products CM082PModel Code: MH0226AA01AB0000000000000AA00JInstallation Notes⚠️ Verify pilot diameter (3.248 inch), bolt pattern (2-bolt on 4.187 inch circle), and shaft size (1 inch) before ordering⚠️ Flush hydraulic lines prior to installation to remove contaminants⚠️ The mounting bracket must have sufficient rigidity to withstand torque reaction forces⚠️ Ensure the connected shaft is concentric with the motor output shaft. Use flexible coupling if misalignment cannot be avoided⚠️ Before first startup, fill the motor housing with clean hydraulic oil to prevent damage⚠️ Maximum case pressure without external drain is 1500 PSI⚠️ Use premium anti-wear hydraulic oil with viscosity of 100 Saybold Universal Second (SUS) or higher at operating temperature

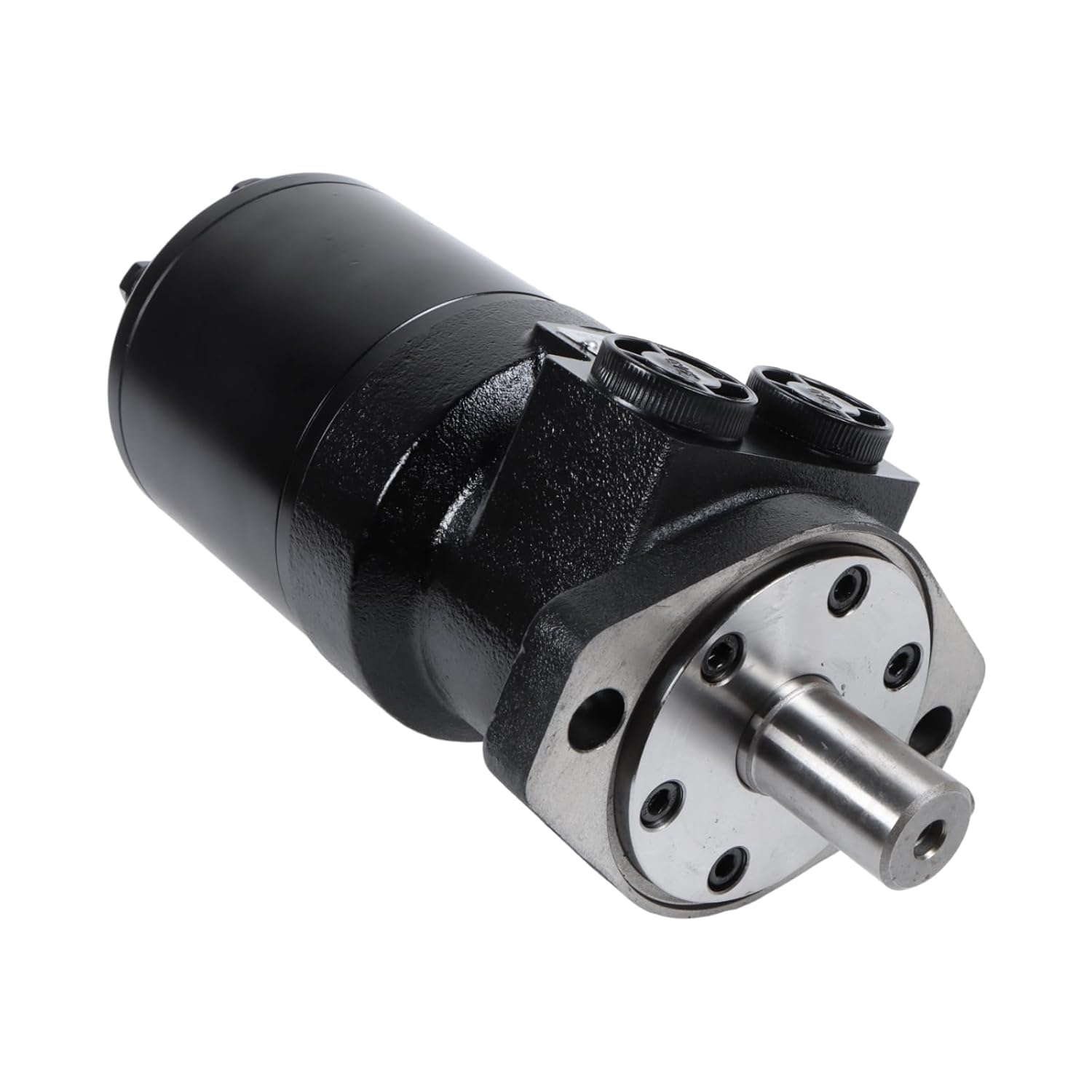

• [🔧] Direct Swap – 22.6 cu/in Displacement: Hydraulic motor 101-1032-009 replaces for Char-Lynn H Series models with 22.6 cu in/rev (370 cc/rev) displacement. The 2-bolt SAE-A flange mount with 3.248 inch pilot diameter and 4.187 inch bolt circle lets this 101-1032-009 hydraulic motor bolt directly onto compressors, augers, and spreaders without modifications.
• [⚙️] High Torque – 3602 lb-in at 152 RPM: H series hydraulic motor delivers 3602 lb-in (407 Nm) continuous torque at 152 RPM, with max pressure 1250 PSI and max flow 15 GPM continuous . The spool valve Gerotor design with hydrodynamic journal bearings on this 101-1032-009 replacement hydraulic motor excels at jobs needing high start-up torque or the right mixture of torque and flow rate.
• [🛢️] NPTF Dryseal Ports – 1/2-14 Side Ports: For Char-Lynn style hydraulic motor features 1/2-14 NPTF dryseal side ports for reliable leak-free connections . The NPTF threads on this 101-1032-009 hydraulic motor create seals without additional sealant, saving installation time on truck and trailer hydraulic systems, compressors, and cranes.
• [🏗️] Keyed Shaft – 1 Inch with 1/4 Keyway: This 101-1032-009 replacement hydraulic motor comes with 1 inch straight keyed shaft, 1/4 inch Woodruff keyway, and 1/4-20 UNC-2B threaded end hole . Cast iron housing with primer low gloss black finish, 2 mils minimum thickness. Maximum operating temperature 180°F, minimum -30°F . Weight 14.7 lbs.
• [📦] Ready-to-Install – Complete Assembly: Box contains one hydraulic motor 101-1032-009 with keyed shaft. Important: Verify 3.248 inch pilot diameter, 2-bolt pattern (4.187 inch bolt circle), and 1 inch shaft before ordering. Flush hydraulic lines prior to installation. Max case pressure without drain 1500 PSI. Replacement seal kit 60540-000 (Buna-N).
